IDCUBE ICM series
Access Control panels
Reliable, cyber-hardened panels for peace of mind

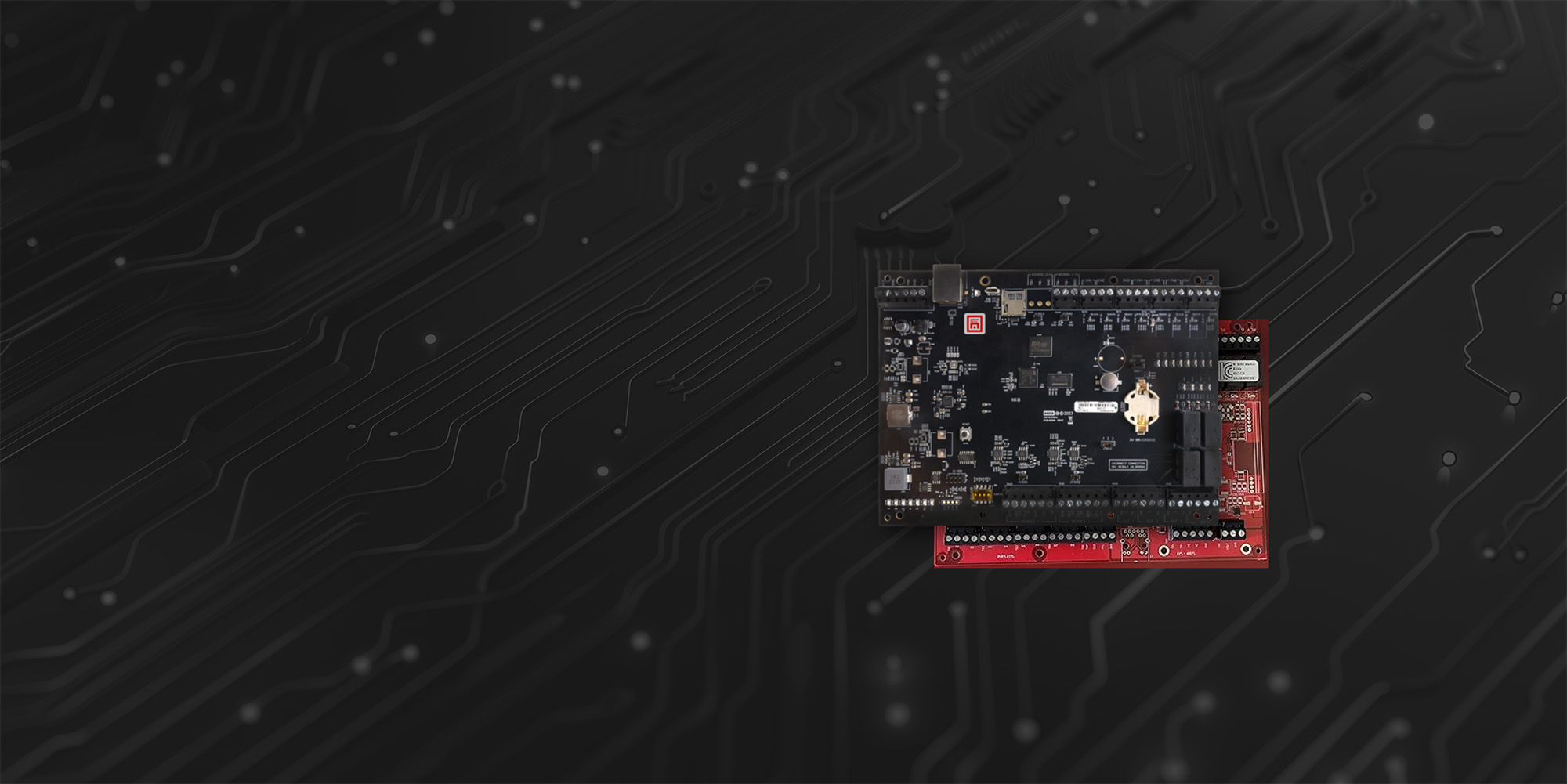

The ICM series by IDCUBE is a range of cutting-edge access control panels that cater to modern facilities with high reliability, security, and cyber resilience demands. These panels run on embedded Linux and are seamlessly integrated with Access360 Helix and Access360.ai The panel includes Mercury LP and MR series of intelligent controllers and interface modules.
Benefits
Cyber Fortress
Unmatched cyber resilience with end-to-end encryption via TLS protocols, crypto memory chips, HTTPS, and more.
Unrivaled Reliability
Our panels set the standard with top-notch MTBF, temperature, and humidity ratings, ensuring peak performance and durability.
Future Network Ready
Get future-ready networking with PoE and support for both IPv4 and IPv6 protocols.
Effective Security
Realize and make complex security protocols more effective with advanced features like occupancy control, multi-man rule, and more.
Certified Quality
Our extensive certifications ensure the delivery of high-quality products that comply with global security, safety, health, and environmental standards.
Versatile Compatibility
Secure and futureproof your facilities with support from legacy and modern reader protocols - Wiegand, OSDP, OSDP SC, and others.
Seamless Monitoring
Ensure cost-efficient, secure workspaces with centralized monitoring using open protocols like PSIA Area Control, SNMPv3/v2c, and BACnet.

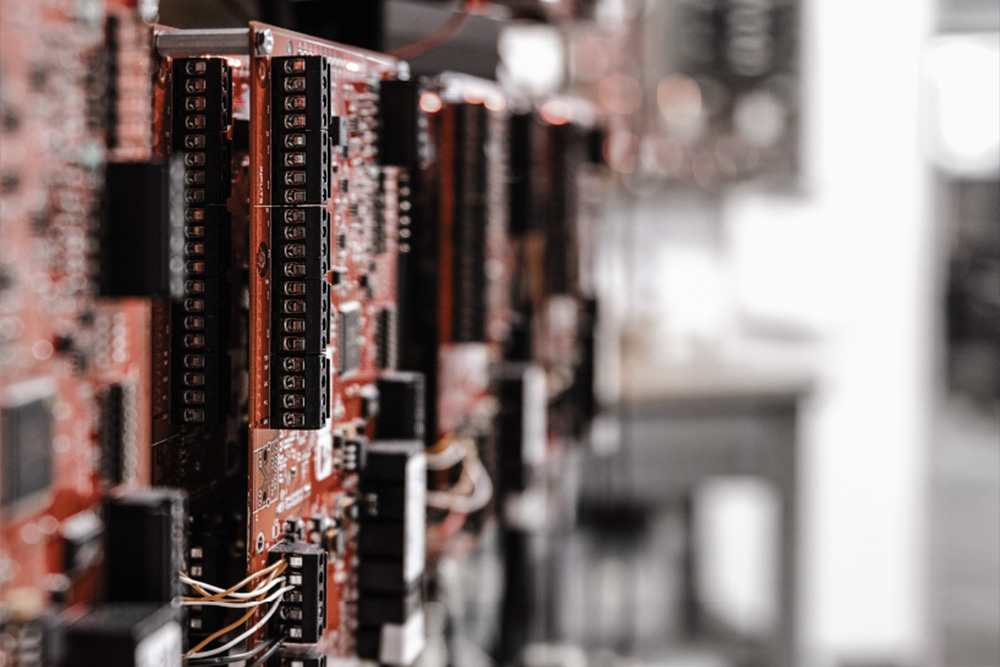

Multi-architecture Support
Enable cost-efficient, standardized, and simplified network and cabling architecture with multiple controller and interface panel options, each with different connectivity choices.
Flexible and Expandable
This series has choices to meet small and large installations with the flexibility to expand with existing devices.
Controllers
Access Master Control Panel ICMLP-1501
PoE+ Edge-capable Intelligent Controller (2 Rdrs, 2 Inputs, 2 Outputs)
Download

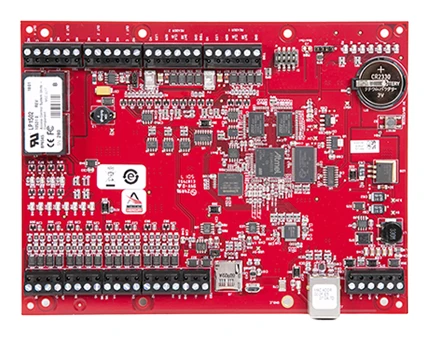

Access Master Control Panel ICMLP-1502
Intelligent Controller (2 Rdrs, 8 Inputs, 4 Outputs)
Download

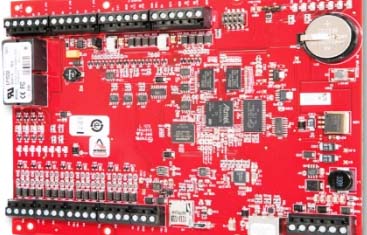

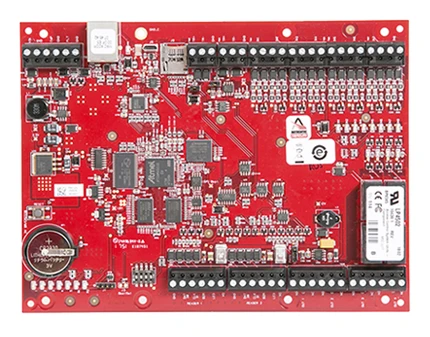

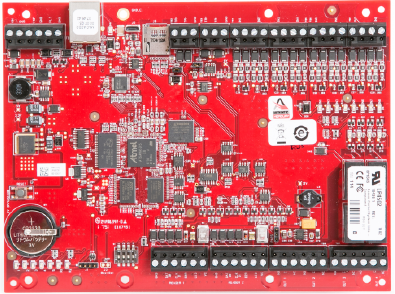

Access Master Control Panel ICMLP-4502
Intelligent Controller w/ Extended Applications (2 Rdrs, 8 Inputs, 4 Outputs)
Download

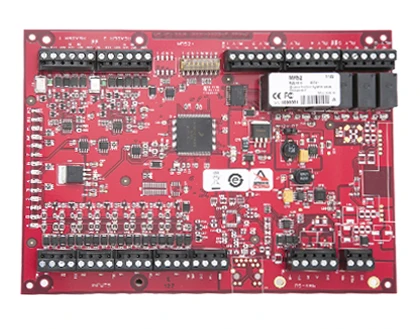

Access Reader Interface Panel ICMMR-52
Reader interface panel provides robust connectivity to peripheral devices
Download
Access Output Interface Panel ICMMR-16OUT
Multi-device interface panel to control high concentrations of outputs
Download
Access Reader Interface Panel ICMMR-62E
Reader Interface Module w/ PoE+ (2 Rdrs, 6 Inputs, 4 Outputs)
DownloadControllers
PoE+ Edge-capable Intelligent Controller (2 Rdrs, 2 Inputs, 2 Outputs)

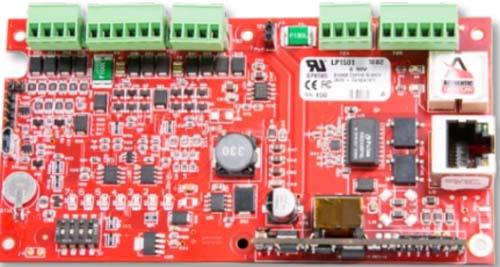

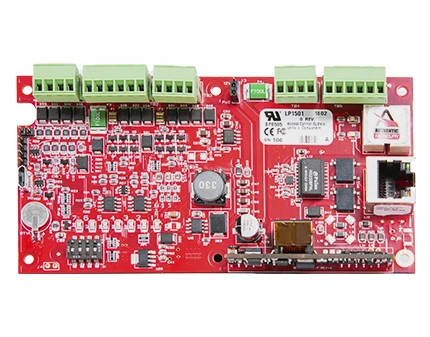

Access Master Control Panel ICMLP-1501
Intelligent Controller (2 Rdrs, 8 Inputs, 4 Outputs)

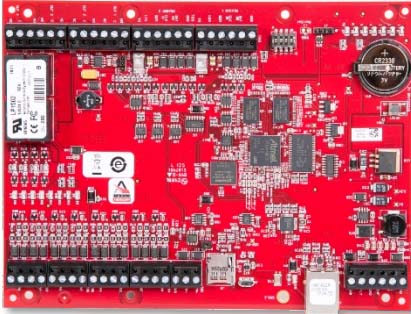

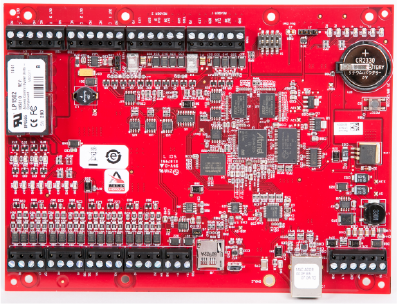

Access Master Control Panel ICMLP-1502
Intelligent Controller (No Onboard IO)

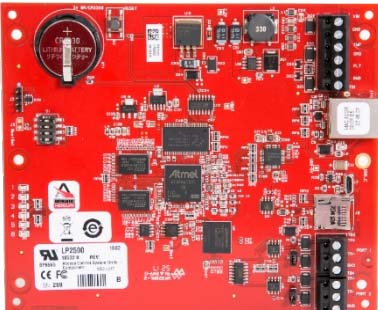

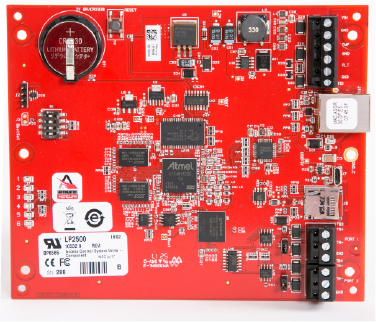

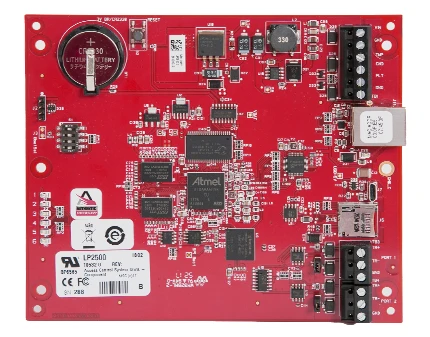

Access Master Control Panel ICMLP-2500
Intelligent Controller w/ Extended Applications (2 Rdrs, 8 Inputs, 4 Outputs)
Access Master Control Panel ICMLP-4502
Single card reader interface panel

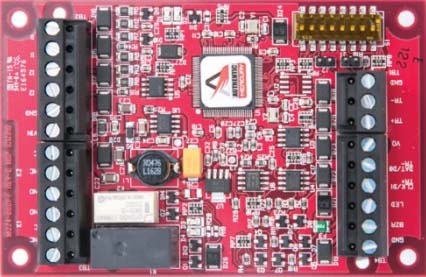

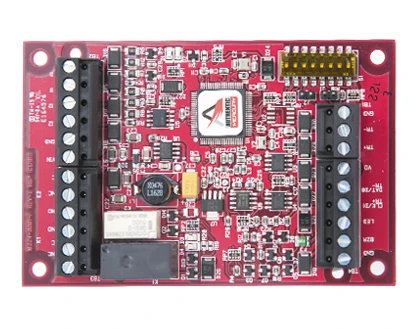

Access Reader Interface Panel ICMMR-50
Reader interface panel provides robust connectivity to peripheral devices

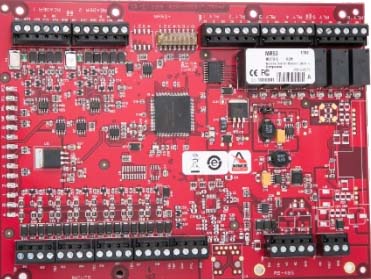

Access Reader Interface Panel ICMMR-52
Multi-device interface panel

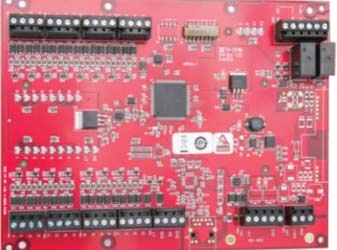

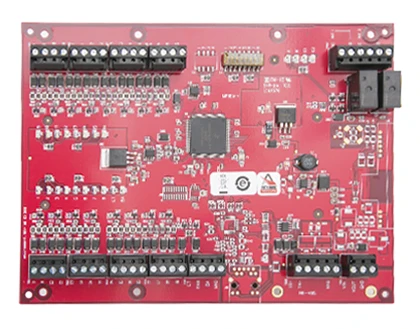

Access Input Interface Panel ICMMR-16IN
Multi-device interface panel to control high concentrations of outputs

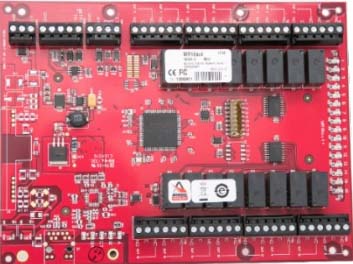

Access Output Interface Panel ICMMR-16OUT
Reader Interface Module w/ PoE+ (2 Rdrs, 6 Inputs, 4 Outputs)

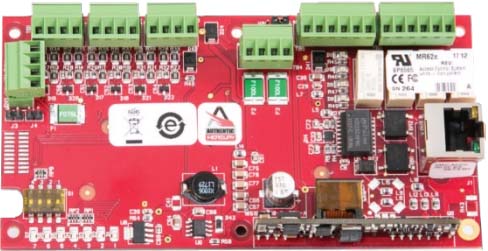

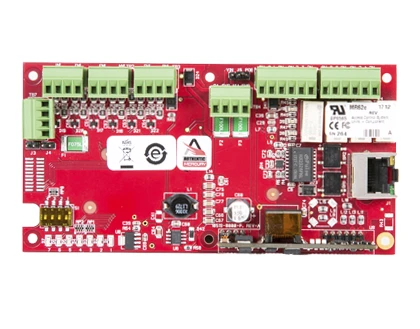

Access Reader Interface Panel ICMMR-62E
Specifications
| ICMLP-1501 | ICMLP-1502 | ICMLP-2500 | ICMLP-4502 | ICMMR-50 | ICMMR-52 | ICMMR-16IN | ICMMR-16OUT | ICMMR-62E | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
| Description | Intelligent Controller — Up to 4 Readers, 7 Inputs, 4 Outputs | Input monitor interface module — supports up to 4 readers, 7 inputs, 4 outputs | Output control interface module — controlling up to twelve general-purpose outputs | Input monitor interface module — monitoring up to sixteen general-purpose inputs | |||||
| Inputs | 615 (using X200 or V200 IO modules) 7 supervised/unsupervised on-board, standard EOL: 1k/1kΩ 1%, 1/4 watt | 7 supervised/unsupervised, standard EOL: 1k/1kΩ 1%, 1/4 watt | 5 supervised/unsupervised, standard EOL: 1k/1kΩ 1%, 1/4 watt | 19 supervised/unsupervised, standard EOL: 1k/1kΩ 1%, 1/4 watt | |||||
| Output | 388 (using X300 or V300 IO modules) 4 Relays, Form-C with dry contacts | 4 Relays, Form-C with dry contacts | 12 Relays, Form-C with dry contacts, non-latching | 2 Relays, Form-C with dry contacts, non-latching | |||||
| Relay Contact Rating | 5A/3A (NO/NC) @ 30 Vdc resistive | 2 A @ 30 Vdc resistive | 2 A @ 30 Vdc resistive | 2 A @ 30 Vdc resistive | |||||
| Input Voltage | 12 to 24 Vdc +/- 10% | 12 to 24 Vdc +/- 10% | 12 to 24 Vdc +/- 10% | 12 to 24 Vdc +/- 10% | |||||
| Maximum Input Current | 1.9 A (550mA excluding readers and USB) | 1.9 A (550mA excluding readers and USB) | 500 mA | 300 mA | |||||
| Operating Temperature | 32 to 158°F (0 to 70°C) | 32 to 158°F (0 to 70°C) | 32 to 158°F (0 to 70°C) | 32 to 158°F (0 to 70°C) | |||||
| Dimension | 6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm) | 6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm) | 6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm) | 6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm) | |||||
| Access Point Control | Up to 2 access points with on-board IO 64 (using X100 or V100 IO modules) | Up to 2 access points with on-board IO | |||||||
| Reader Support | Up to 4 (OSDP multi-drop) or 2 (Wiegand) with on-board IO 64 (OSDP or Wiegand, regardless of IO module configuration) | Up to 4 (OSDP multi-drop) or 2 (Wiegand) with on-board IO | |||||||
| Access Levels | 32 per credential (per reader schedule) | ||||||||
| Credential Capacity | 250000 | ||||||||
| Number of IO Module Buses | 2 (each dedicated to either Aero or VertX IO modules) | ||||||||
| Ethernet Communication | 10BaseT/100Base-TX | ||||||||
| Download | Download | Download | Download | Download | Download | Download | Download | Download |
